Receive the TilliT Event

We have now configured TilliT to send an MQTT message on the Equipment Stopped event. In previous steps we also described how to connect to the TilliT Broker and what topic to subscribe to receive the event. You can use the code snippet provided here and adjust to the steps outlined here.

Subscribe to the tenant/# topic

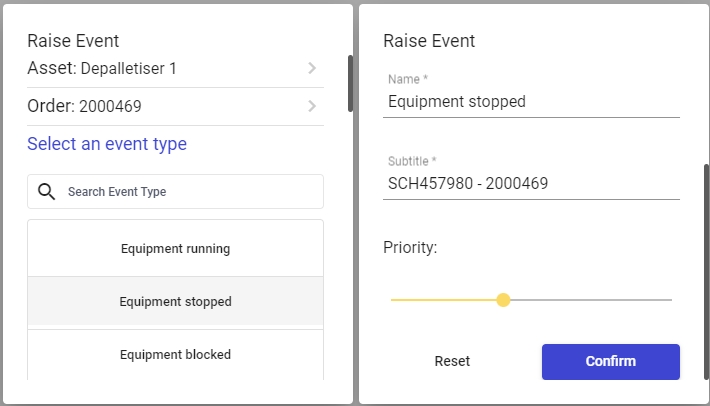

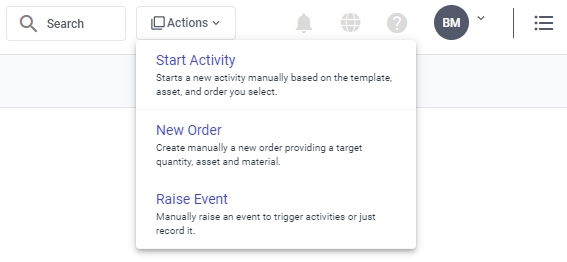

Manually raise an Equipment Stopped event in TilliT

See that you receive a similar payload body via MQTT as shown below

{
  "id": 177842,
  "createdAt": "2022-06-30T06:54:33.638Z",
  "updatedAt": "2022-06-30T06:54:33.638Z",
  "name": "Equipment stopped",
  "subtitle": "SCH457980 - 2000469",
  "activityKey": null,
  "priority": 2,
  "timestamp": "2022-06-30T06:54:33.590Z",
  "closedAt": null,
  "status": "ACTIVE",
  "asset": {
    "id": 2,
    "createdAt": "2020-12-14T05:51:58.589Z",
    "updatedAt": "2022-03-18T04:11:31.127Z",
    "name": "Depalletiser 1",
    "displayOrder": 1,
    "defaultRunRate": 60,
    "packml": true,
    "representsLineProduction": false,
    "representsLinePerformance": false,
    "allowMultipleOrders": false,
    "active": true,
    "type": "EQUIPMENT",
    "site": {
      "id": 1,
      "createdAt": "2020-12-14T04:49:27.159Z",
      "updatedAt": "2022-05-24T02:45:26.660Z",
      "name": "Bottling site 1",
      "displayOrder": 1,
      "timezone": "Australia/Adelaide"
    }
  },
  "eventType": {
    "id": 2,
    "createdAt": "2020-12-14T04:49:26.875Z",
    "updatedAt": "2020-12-14T04:49:26.875Z",
    "name": "Equipment stopped",
    "subtitle": null,
    "priority": 2,
    "displayOrder": 1,
    "systemEvent": "EQUIPMENT_STATUS_STOPPED",
    "closingEventId": 1
  },
  "order": {
    "id": 34785,
    "createdAt": "2022-05-18T01:10:10.731Z",
    "updatedAt": "2022-06-30T05:25:19.308Z",
    "name": "2000469",
    "orderDate": "2022-06-30",
    "orderNumber": "SCH457980",
    "operation": "DEPAL",
    "batchNumber": null,
    "quantityTarget": "280",
    "dueDateTime": null,
    "scheduledStart": "2022-06-30T01:14:08.000Z",
    "scheduledEnd": "2022-06-30T04:52:43.000Z",
    "actualStart": "2022-06-30T05:25:19.229Z",
    "actualEnd": null,
    "defaultRunRate": 60,
    "status": "RUNNING",
    "notes": null,
    "actualChangeoverStart": null,
    "actualChangeoverEnd": null,
    "scheduledChangeoverDuration": null,
    "previousOrderId": 34779,
    "schedulerOrderItemId": 2051,
    "segmentExternalId": "Produce",
    "routeExternalId": "Route 1",
    "material": {
      "id": 3,
      "createdAt": "2020-12-15T23:43:06.027Z",
      "updatedAt": "2022-06-29T17:39:52.490Z",
      "name": "459690 Merlot v01",
      "active": true,
      "canProduce": true,
      "canConsume": true,
      "externalId": "2000457",
      "barcodeReference": "1231231321231",
      "defaultRunRate": null,
      "displayOrder": 2
    }
  },
  "activityInstance": null,
  "changeOver": false,
  "eventReason1": null,
  "eventReason2": null,
  "eventReason3": null,
  "eventReason4": null,
  "downtimeType": null,
  "comments": null
}<br>


\
