# Control Parameters

## Video Tutorial

{% embed url="<https://youtu.be/7OQhnUBfm1g>" %}

## What are Control Parameters?

Control Parameters are the names for the variables whose values would be sent to assets in conditions that quality the Rules within [recipes](https://help.tillit.cloud/tillit/knowledge-base/setting-up-tillit/recipe-management/recipes "mention").

## Navigation

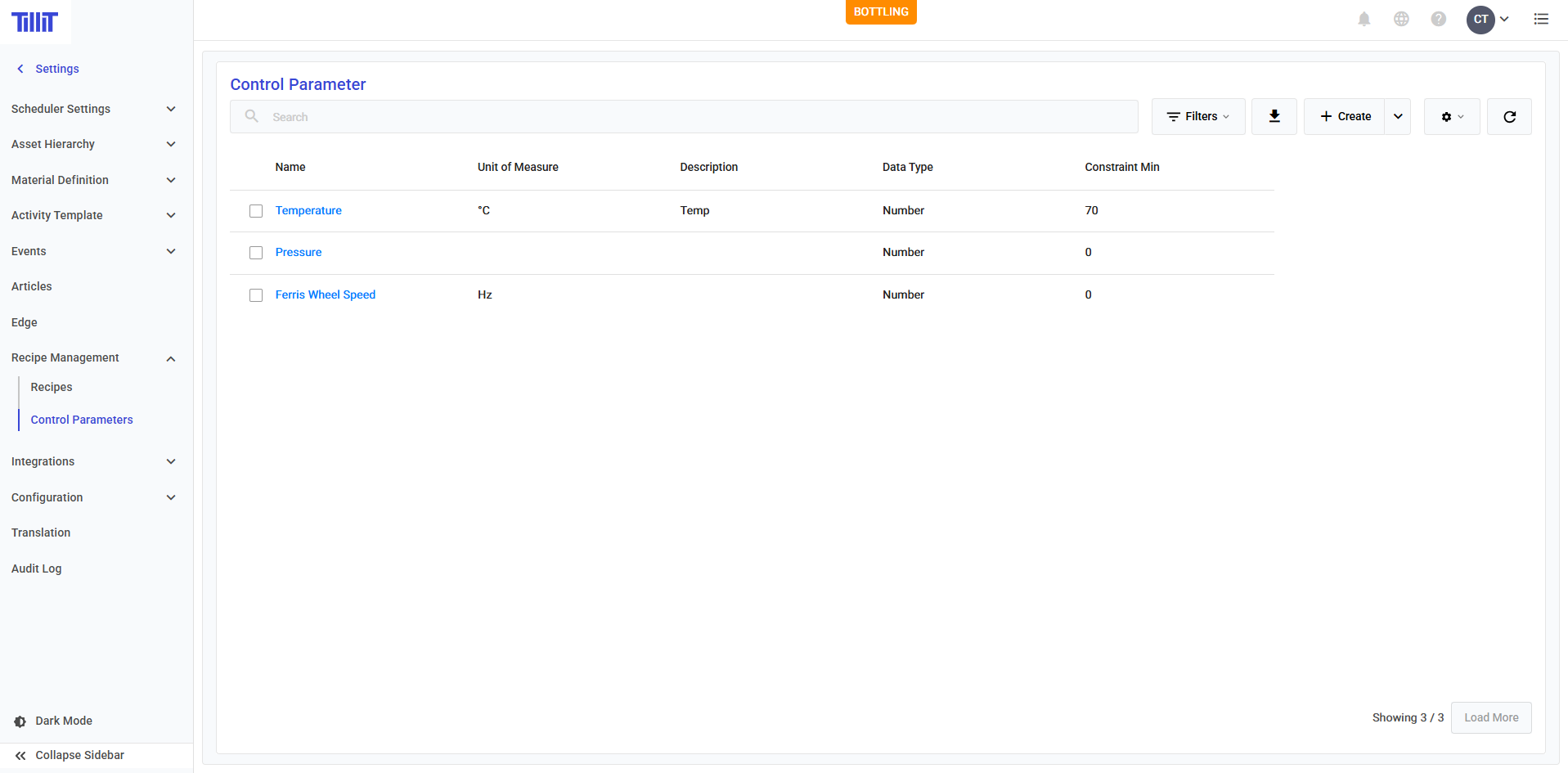

Go to Settings > Recipe Management > Control Parameters

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-72dc6cad56eae46647a4a34e5fbb51332dad897c%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

## Creating a Control Parameter

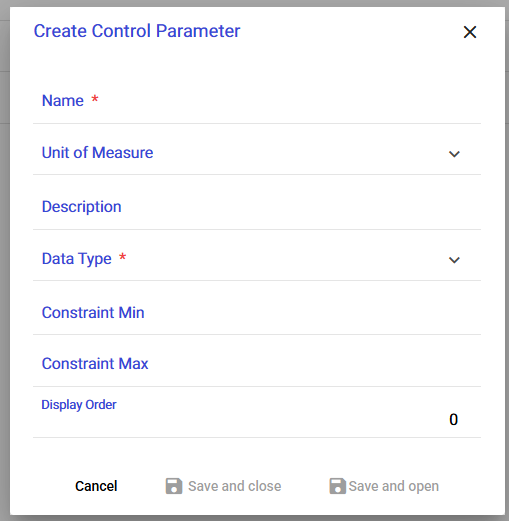

Click on Create and fill in the modal

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-cfb39d2ebbe5ae225d085c44078bcc1a26414c6f%2Fimage.png?alt=media" alt="" width="382"><figcaption></figcaption></figure>

| Field               | Description                                                                                                                                                                                                               |
| ------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Name                | Name of the Control Parameter                                                                                                                                                                                             |
| Unit of measurement | <p>Unit of measurement for this CP.<br>For example, it would be "C" for "Temperature", or "minutes" for "Blanching duration"</p>                                                                                          |
| Description         | Description of the CP                                                                                                                                                                                                     |
| Data Type           | <p>Choose between Number, Text, or Boolean.<br>For example, "Temperature" would have "C" for Uom, but "Number" for data type.</p>                                                                                         |
| Constraint Min      | The absolute minimum the value of the CP can have. See [process-variable](https://help.tillit.cloud/tillit/knowledge-base/setting-up-tillit/configuration/process-variable "mention")for another example of this concept. |
| Constraint Max      | The absolute maximum the value of the CP can have. See [process-variable](https://help.tillit.cloud/tillit/knowledge-base/setting-up-tillit/configuration/process-variable "mention")for another example of this concept. |
| Display Order       | The display order of the CP in the entity manager list.                                                                                                                                                                   |

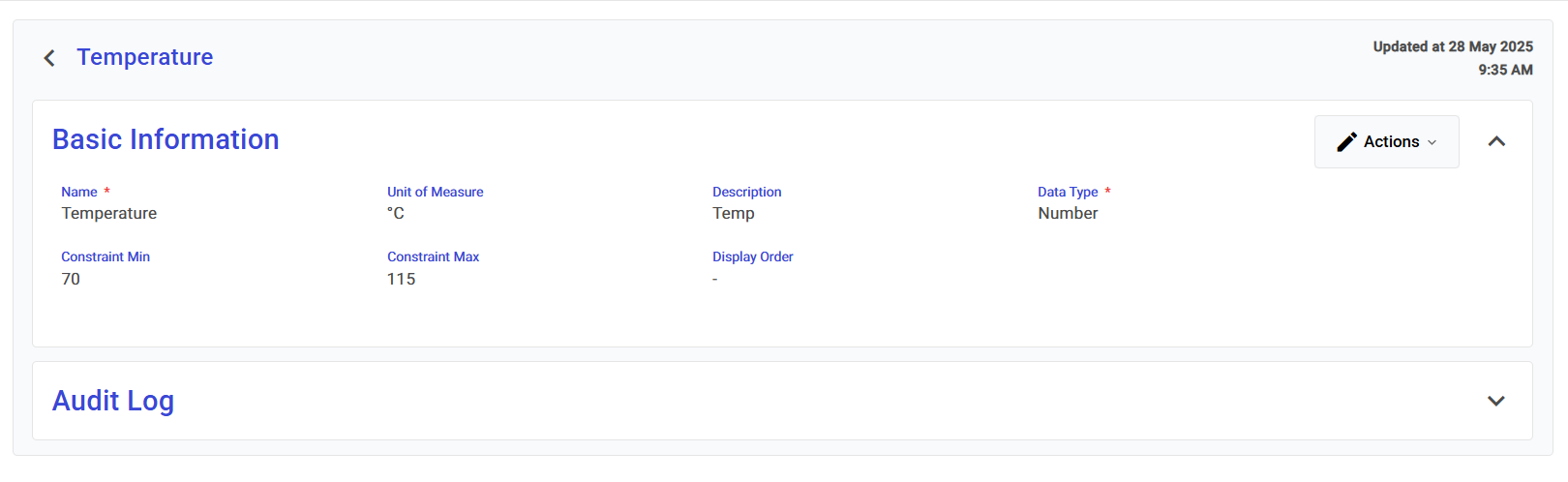

### Example

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-648f18e03b9f7289462c7d35c64cc5d45fee2e4b%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

## Next steps

Now you are ready to create Rules for [recipes](https://help.tillit.cloud/tillit/knowledge-base/setting-up-tillit/recipe-management/recipes "mention") using these Control Parameters :smile:
