# OEE

### Overview

Measuring the Availability, Performance and Quality (APQ's) of a Line, Asset or Equipment is a key pillar of Industry 4.0. TilliT achieves this through simple measurements of your equipment statuses, production counts and downtime classification. All of these can be ingested into TilliT via manual Activities, our TilliT Edge solution or Integration via API/MQTT. Completing this setup in TilliT unlocks the full reporting potential of your operations to drive and measure continuous improvement programs.

#### Where to find OEE in TilliT?

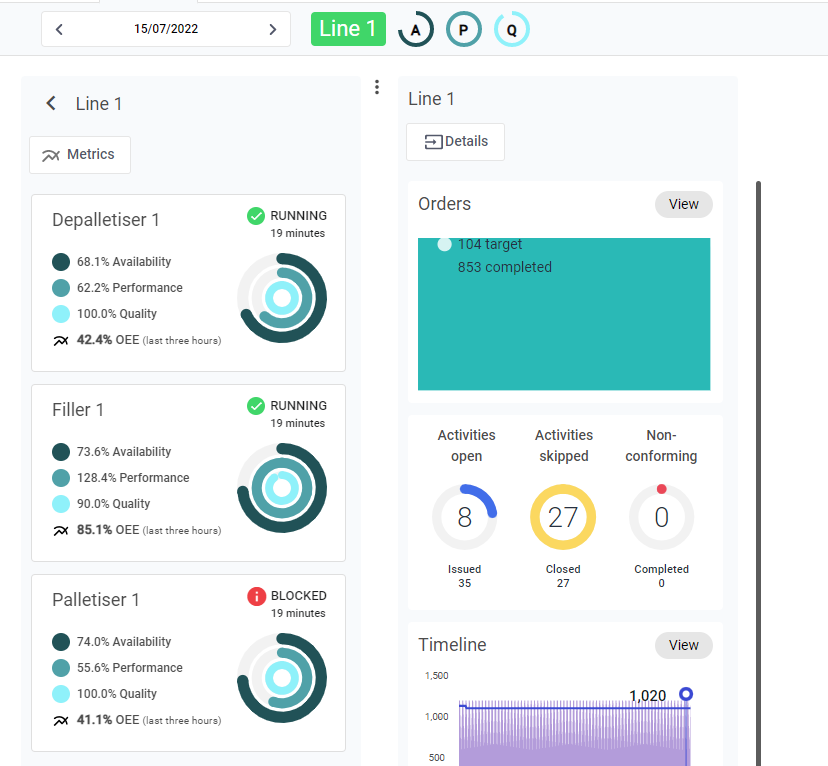

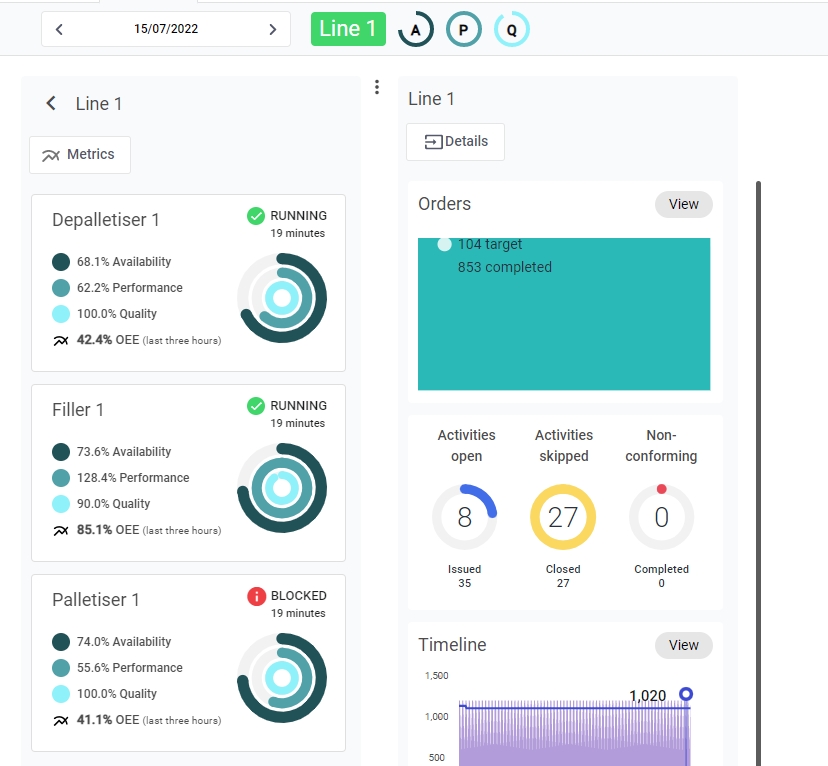

When you select an asset, you can find a breakdown of your APQ's on the asset card by clicking the ***Metrics*** button and next to the date selection. This will only show you the past 3 hours of production. For a full history, you need to utilise the [Production Report](https://help.tillit.cloud/tillit/knowledge-base/reports/production-report) or [Dashboarding](https://help.tillit.cloud/tillit/knowledge-base/reports/dashboards)

<figure><img src="https://d33v4339jhl8k0.cloudfront.net/docs/assets/60208fd212248b2c96d50eeb/images/62d0f3add242501d78c64b05/file-yKKb2bPiMJ.png" alt=""><figcaption></figcaption></figure>

#### **Need to find out more about OEE + TilliT?**

* Take 5 minutes to read our blog post by CTO and Co-Founder Rafael Amaral on [Demystifying digital operations: why OEE isn’t the only tool you need](https://blog.gotillit.com/demystifying-digital-operations-why-oee-isnt-the-only-tool-you-need)

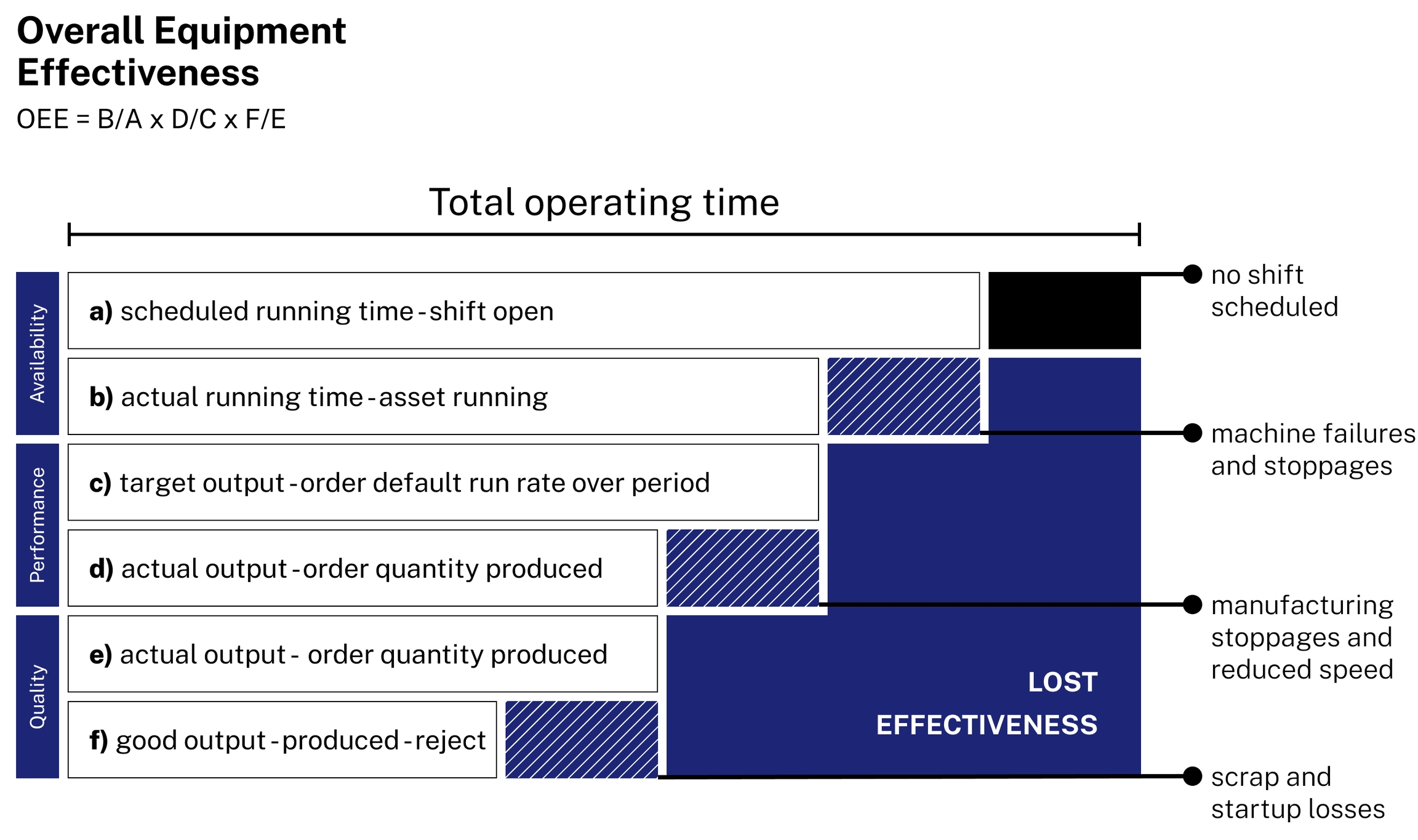

#### See how 'effective' your production is!

![](https://d33v4339jhl8k0.cloudfront.net/docs/assets/60208fd212248b2c96d50eeb/images/62d0feb8d242501d78c64b14/file-lQRIJF2l7x.png)

In this section, we will show you how to configure **3 important components** that will make up OEE calculation in TilliT:

1. **Availability**
2. **Performance**
3. **Quality**
