Option list
Creating a new Option List

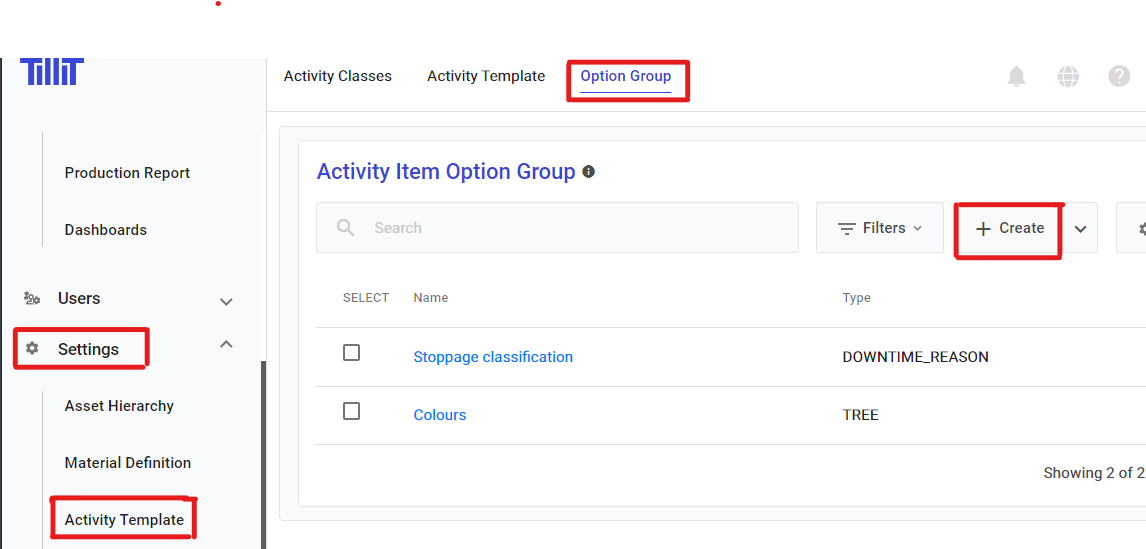

Go to Settings > Activity Template > Option Group > Create
Enter a name for the Option list and select a type.
Once you've chosen the type, select Save and open.
Option List Types
SINGLE
Presents all options, allowing the operator to only select one item in the list.

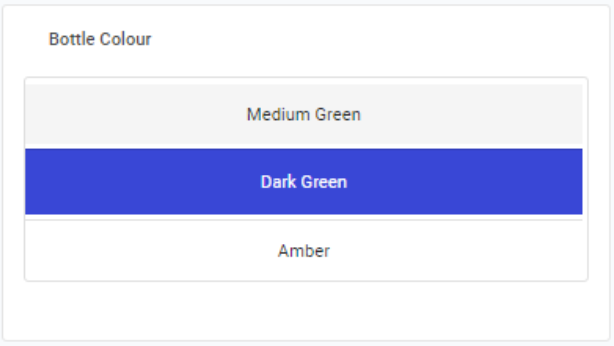

The following example shows a single option list ->
MULTIPLE
Presents all options, allowing the operator to only select multiple items in the list.
The following example shows a multiple option list ->
TREE
Uses Parent-Child relationships to allow the user to drill down to a more detailed response quickly. The first option will be the main parents, moving onto each child until there are no more children in the list.

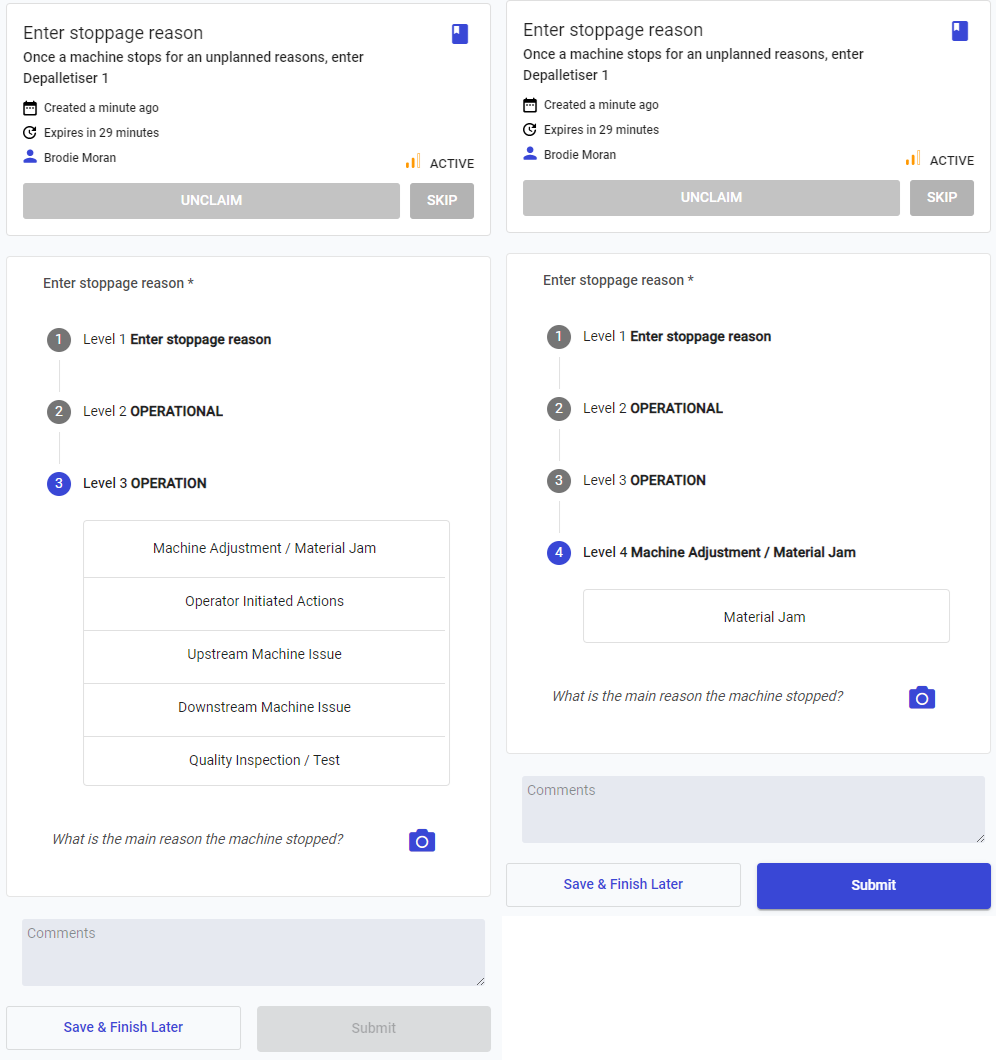

The following example shows a tree option list that has four branches ->

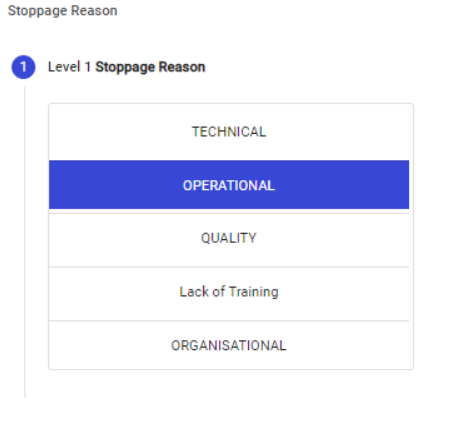

Level 1:

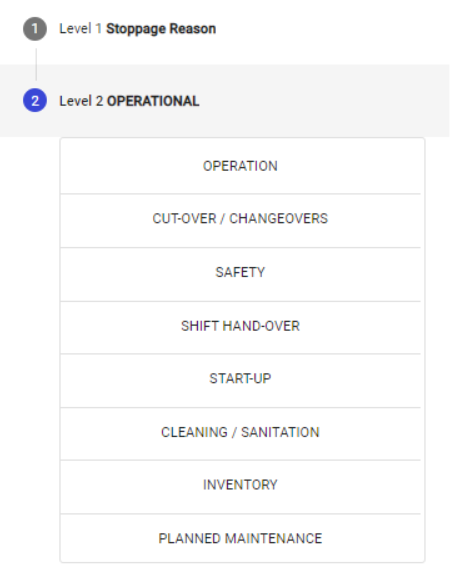

Level 2:

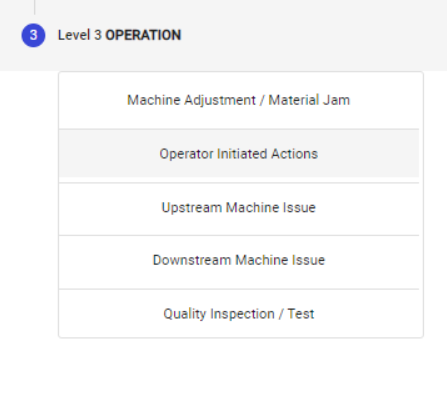

Level 3:

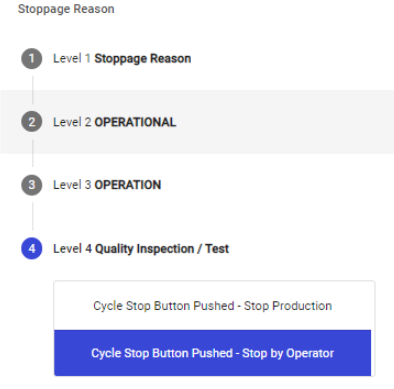

Level 4:
DOWNTIME_ REASON
Uses same Parent-Child relationships as TREE type (see example above), but allows you to define each answer's downtime type as either PLANNED or UNPLANNED.
If the reason is PLANNED, this will not affect OEE metrics, but if it is UNPLANNED, it will start to negatively affect availability in OEE.
DOWNTIME_REASON and the Downtime Table
When an activity template uses a DOWNTIME_REASON option list and an activity is generated from a downtime event, TilliT links the two together. If a Team Leader has already assigned a reason to that event via the Downtime Table, the operator's activity form will open with:
The Downtime Type option field prefilled with the reason assigned in the Downtime Table
The Comment field prefilled with any comment the Team Leader added to the event
If the operator edits the prefilled comment and submits the activity, their comment overwrites the event comment in the Downtime Table. If they leave the comment unchanged, the original event comment is preserved.
If the operator skips the activity with a comment, that comment is written back to the downtime event and will appear in the Downtime Table.
Adding Items
Once you've created your option list, you will need to add items for the list.

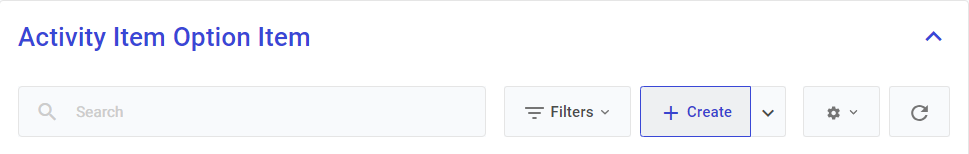

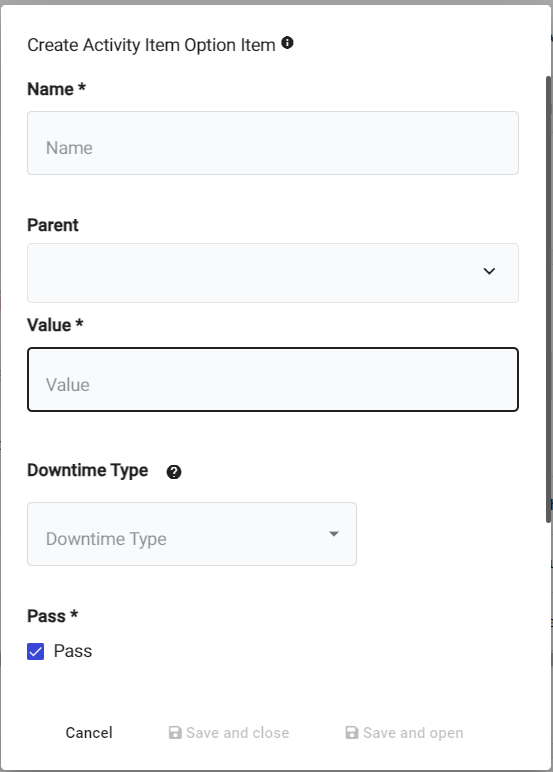

Under Activity Item Option Item, click Create; and fill out the fields.
Name
This will be what is visible on the list.
Parent
Parent is required for TREE and DOWNTIME_REASON types only.
Value
Enter a Value; this is the value of the selection. For example, you may want Yes and No as the options in the list, but the value be Boolean->
Pass checkbox
Allows you to decide whether choosing that item will pass or fail the activity. Tick the box to pass; untick the box to fail.
Display Order
Sets the order in which the item appears in the list, starting with 0 being first. There is no upper limit.
Required checkbox
Used to define a certain level of classification. When completing the form, if any child of the current selected option item has a required field, then the form is invalid and cannot be submitted.
When the form is being filled out, the submit button is disabled until the item on this level is selected (Note that any item can be selected to meet the requirements, since any item contains no children that are required)
