Item types

PreviousElementsNextItem properties

Last updated 5 months ago

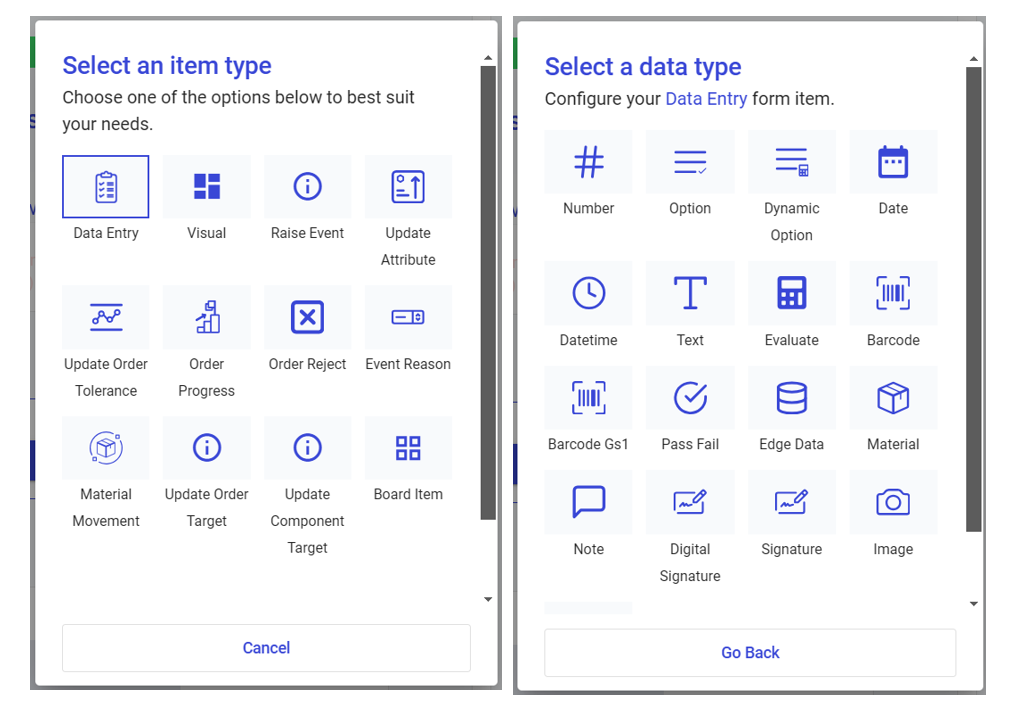

Elements have an Item type and a Data type. The data type available is dependent on the item type that you choose. For the example below, these are the current data types that are available for the Data Entry form item:

Item Types

The item type decides what behaviour is expected from the element, listed below.

Item Type
Description

Data Entry

the most common item type, captures data in an activity.

Visual

this item type provides visual customizations for the activity form by either adding notes or sectioning the items.

Raise Event

evaluate an expression that if true will raise a specified event type.

changes an attribute's value (either on order, material or asset). There are three types of Update Attribute

changes the lower limit, upper limit and target values of an order.

Order Progress

the value must be a number and will add to the quantity produced on an order.

Order Reject

the value must be a number and will add to the quantity rejected on an order (NB: this does note remove from the quantity produced).

Event Reason

Records an a reason for any given event.

Material Movement

Update Order Target

Lets you update the current order's target

Update Component Target

Lets you update the current running order instance's component (or also known as Bill of Materials) target.

Board Item

Common data types

The data type decide how the value of the item type is captured. Each item type has it's own data type options, listed below.

You can click on the complex Data Types for more details on how they can be used.

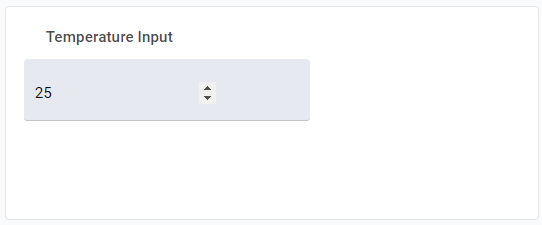

Number

Only accepts number characters. Numbers can be positive or negative.

If you have not configured a list, look at Option List to create one.

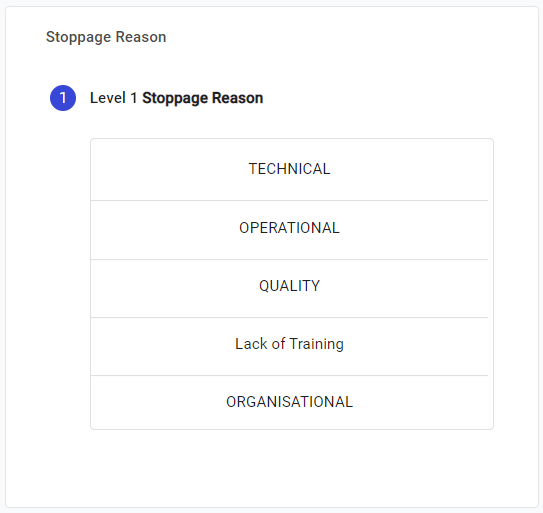

Choose from a configured list. Available as single, multiple or tree options.

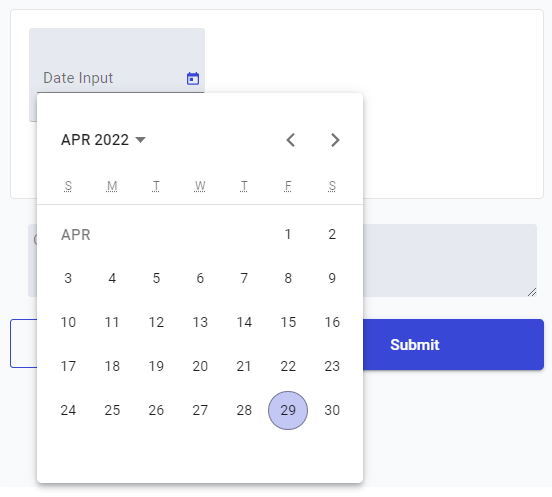

Date

Provides a date picker to enter a specific date.

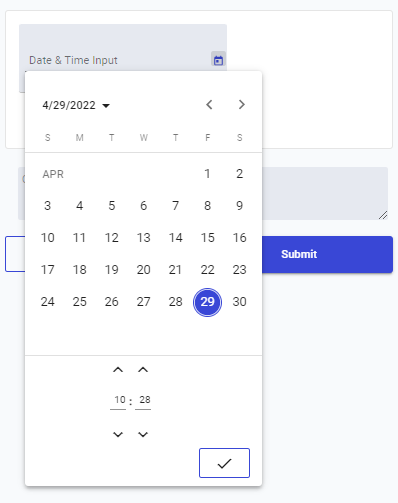

Date/Time

Provides a date/time picker to enter a specific date and time.

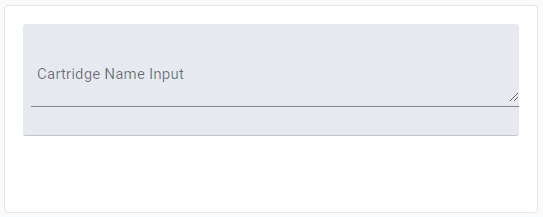

Text

Accepts any character (text, number, spaces and special characters).

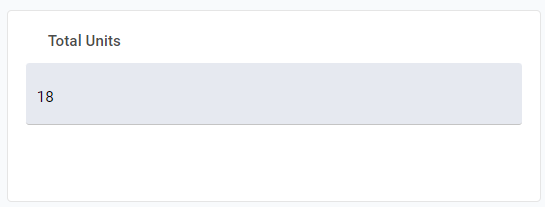

Evaluate Data types & Dynamic Note

Allows you to configure a calculation using math and/or JavaScript. Attributes and Item Keys can be references in the calculation.

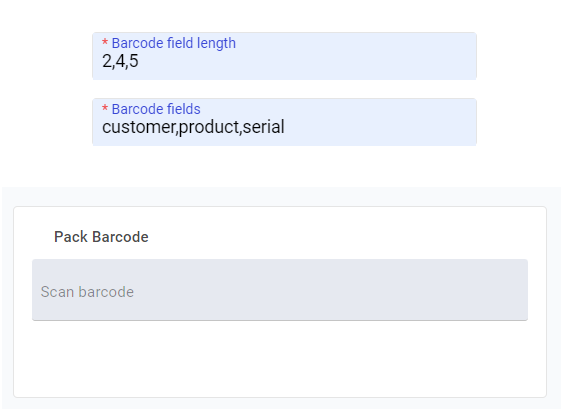

Accepts any character (text, number, spaces and special characters). Define barcode field lengths to parse into other elements in the activity.

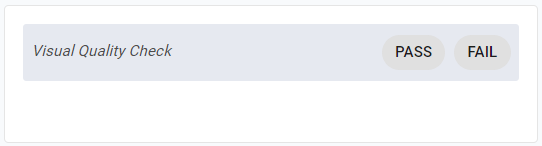

Pass/Fail

Provides two buttons; one for pass, one for fail.

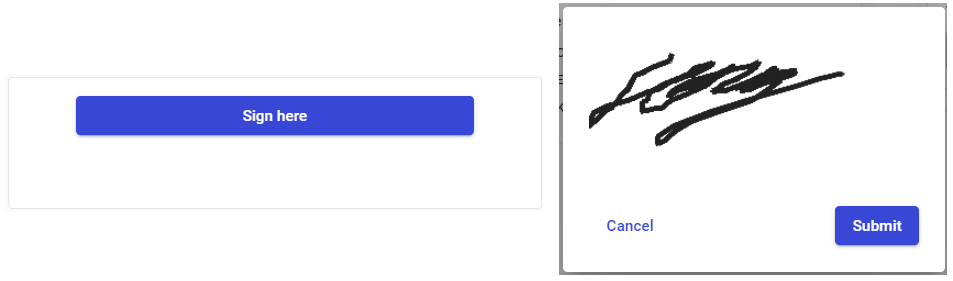

Signature

Presents a button to open a box in which you can sign using a touchscreen display or other input device (e.g. mouse, pen tablet, etc).

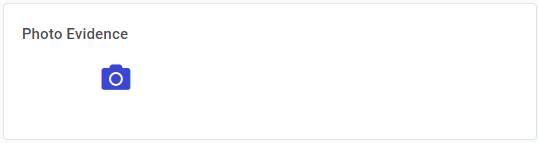

Provides ability to either capture an image using your devices camera, or upload an image from your device.

Update a material movement type. See

Lets you add an board item entry through an activity. See

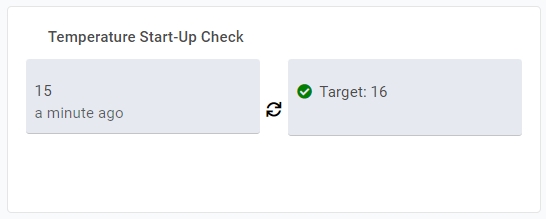

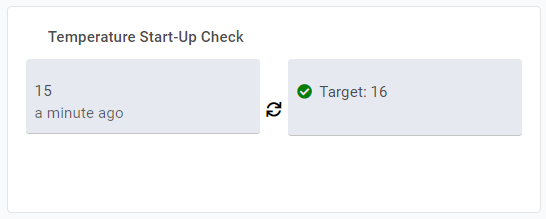

Pull in any data that is received by the your device.

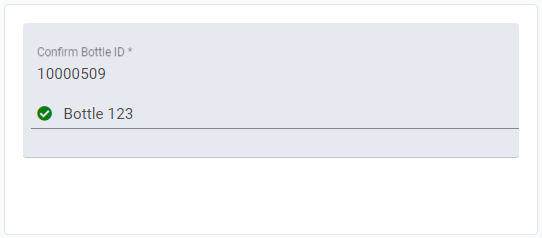

Allows the user to enter the External ID of a to confirm if it belongs to the order's material. Best used in conjunction with .

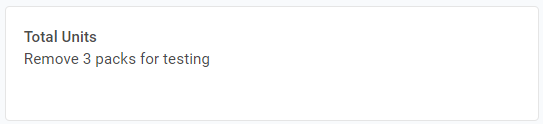

Used to provide notes within the activity form. This can be made dynamic using .

Option List
Barcode
Edge Data
Material Component
Material Component
Barcode
Read Only Note
Board Item
Material Component
Update Attribute
Update Order Tolerance
TilliT Edge
Calculations
