Event Relay

Overview

TilliT's structure is based around the principle that each Asset has its own order and operation. For the most part these orders and assets are separated and self contained from other orders and assets. However depending on your business processes and workflows these assets may need to communicate. This is where Event Relay comes into play. Event Relay is the feature that allows assets to send Events to other assets allowing for order and activity orchestration.

Two common use cases are:

• Linking multiple orders to change status.

  • e.g. When Order 1 on Asset A is started -> Start Order 1 on Asset B

• You attach Activities to be triggered from relayed events.

  • e.g. Asset A needs a clean done on Asset B.

  • Asset A -> Clean Required Event -> Event Relay-> Asset B -> Clean Required Event -> Cleaning Activity Triggered

Creating a new Event Relay

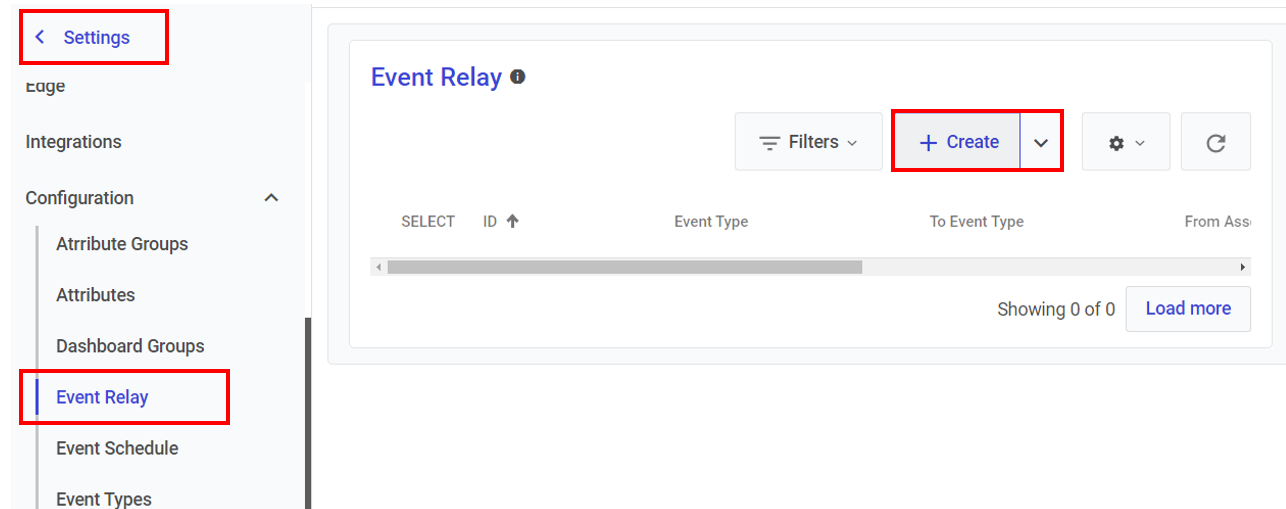

Go to Settings > Configuration > Event Relay > Create

You will be presented with a pop-up.

Fields

Name	Description
Event Type*	The base event that will trigger the relay
To Event Type*	The new event that will be generated. Note: This may be the same as the event type.
From Asset	The specific asset that will be triggering the relay. Note: Either a From Asset or From Asset Class is required.
To Asset	The specific asset that will be recieving the event. Note: Either a To Asset or To Asset Class is required.
From Asset Class	The Asset Class that will be triggering the relay.
To Asset Class	The Asset Class that will be receiving the event.
Match Order Number checkbox	If selected, the event will be triggered on an Order with the same Order Number as the Order running on the From Asset.

Click the Save and close** ** button to finalise.
