Building

Once you've set up the form, you can start adding elements.

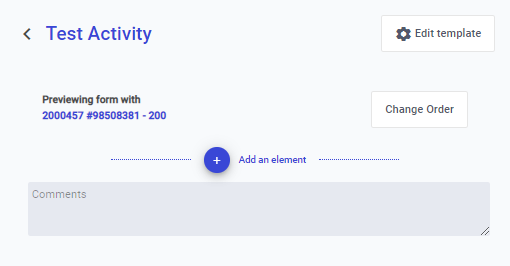

Activity Template focusing the "Add an element" button

Building Your Form

1

Click Add an element to start building

2

Select an Item Type.

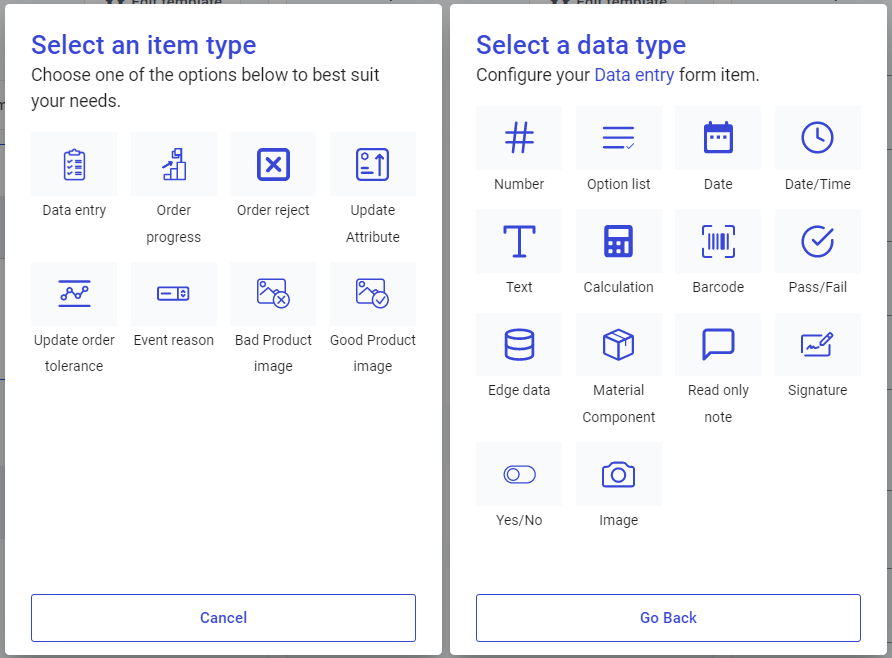

Dialog window displaying icons for selecting an item type
3

Choose the appropriate Data Type.

Dialog window displaying a grid of options for selecting a data type
4

Fill in the required item details.

You'll need to give the item a Name and an Item Key. The Item Key is generated from the Name, but can be changed. The Item Key must not contain spaces or special characters. The Hint (optional) is a text field for you to provide extra context (e.g. what control to use on the machine):

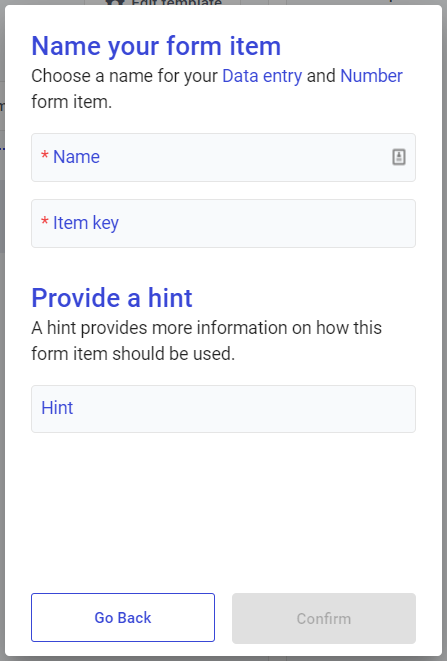

Form section for naming a form item, with input fields for "Name", "Item key", and "Hint"
5

Finally, you'll be asked to add any additional attributes to the item (optional), such as a Process Variable or Active Item Expression (details of each of these are available in this Help Portal). Once you've added these, click Save.

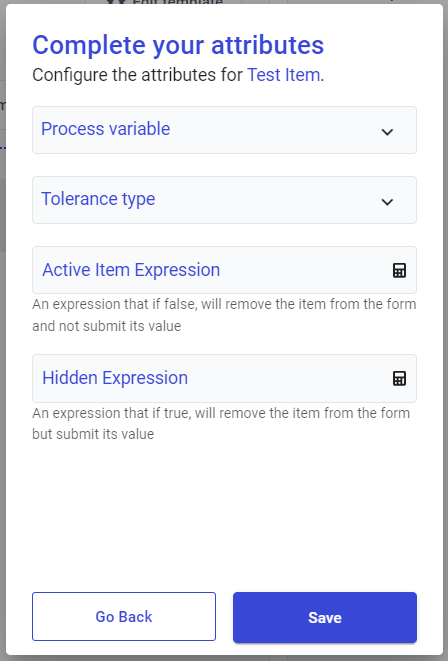

Configuration panel for completing item attributes, featuring dropdowns for "Process Variable" and text fields for expressions

Previewing your template

If you already have an order loaded in TilliT, you have the option to use it to preview how the Activity Form as you build it. You can do this by clicking the Change Order button; you will then be presented with a pop up to find your order.

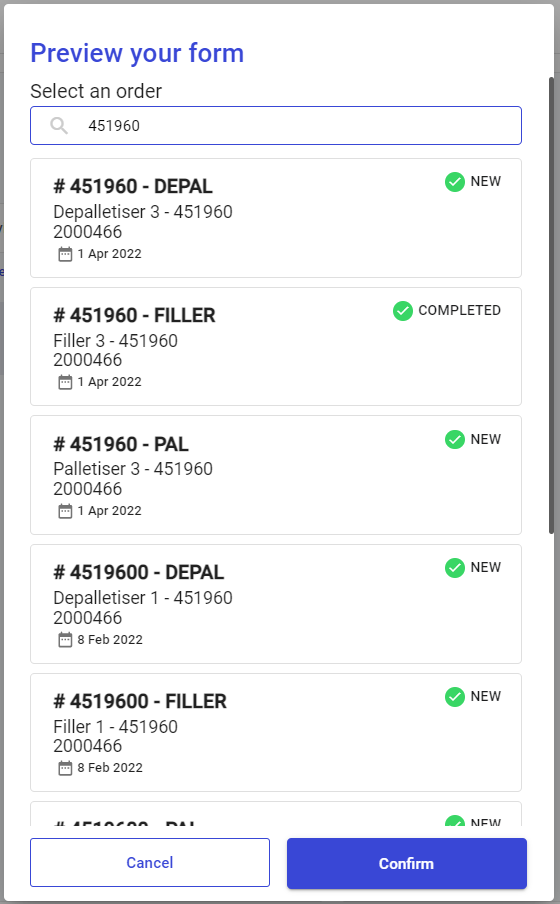

Pop-up modal titled "Preview your form" listing available order numbers to select for previewing

Editing Template Settings

If you need to make any changes during the activity setup at any point, or you need to delete the template entirely, you do this via the Edit template button.

Activity Template highlighting the "Edit template" button

This will bring the template settings up on the right:

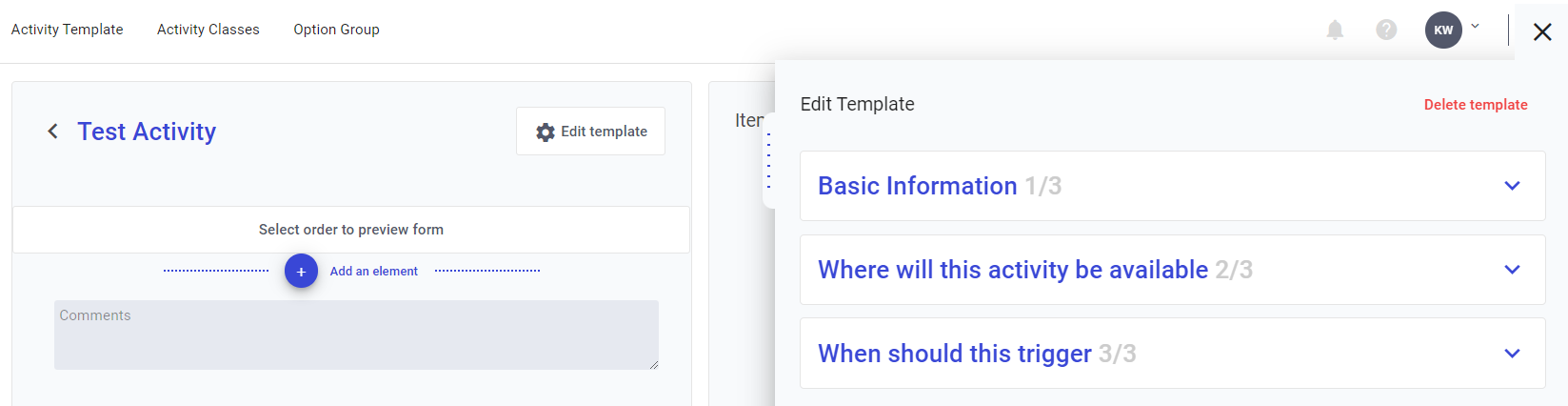

Template editing screen showing the main form builder on the left and the side configuration panel on the right

Use this side panel to modify template details, disable a template, or delete it at any point during setup. The available configuration options include:
