# TilliT Edge Agent on Windows

## Download the Installer

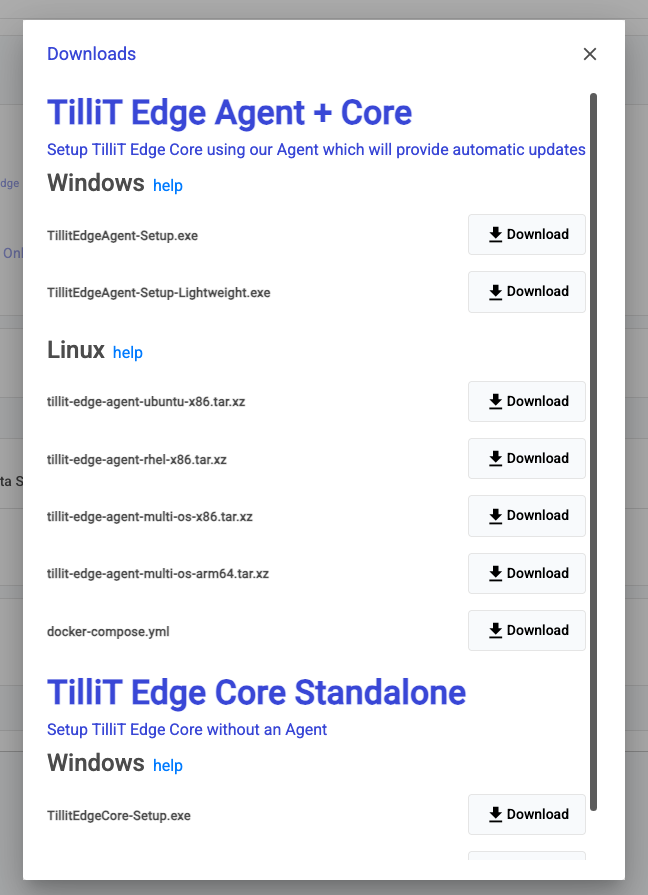

Download the Installer via the link below or by clicking the TilliT Edge Agent + Core on the Download Edge Page

{% embed url="<https://tillit.cloud/assets/edge/windows/TilliTEdgeAgent-Setup.exe>" %}

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-1e266c82a3ebe4f28ad0517e5f03a9373c606047%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
The regular .exe install comes with all dependcy packages downloaded which is great for installing with zero internet connection and restrictive firewalls. If you require it, a Lightwweight version of the package is also distributed to download the depenancy packages at the time of installation.
{% endhint %}

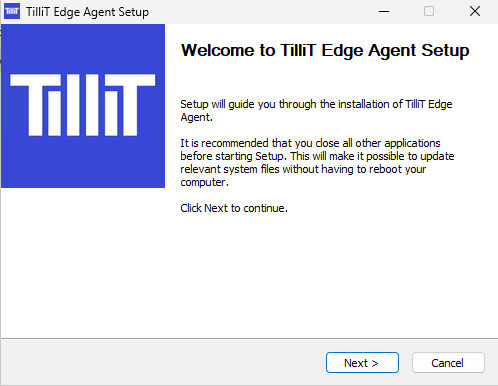

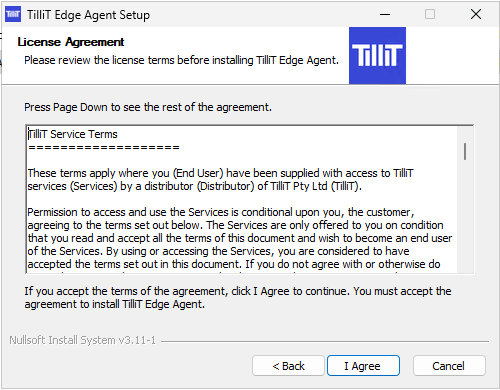

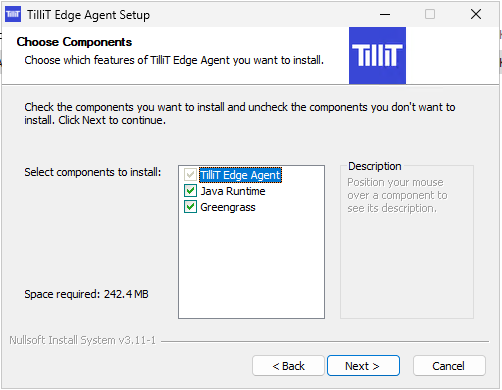

## Using the Installer

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-f1c158ccfa121c6c3570d466cddd638e8caf57b6%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-d15d1d02adf899ab20bd22c02d9e37c273c94bf6%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-4f86dbb33b26c31ecefda5cecfe2e19a5768382d%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

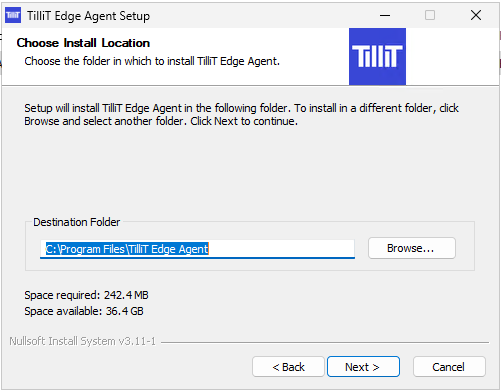

### Installation Location

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-537c9a57a79a05242a30e76057ef584c8e2ba29b%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Getting your Edge resources

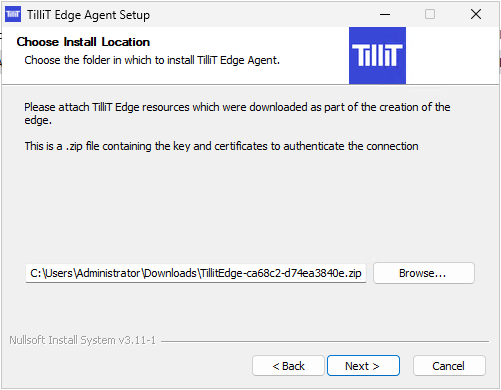

Upon creating your Edge, you will have downloaded a .zip file which contains nessecary files for securing your connection to TilliT IoT Cloud. Load the zip file into the installer on this page.

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-a0b674311d18a92b73c1bbac0b6970d56bd5bfca%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

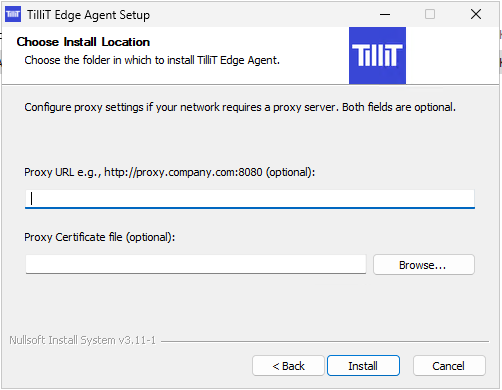

### Proxy Configuration

The TilliT Edge Agent does not inherit any system configuration around usage of proxy. If the target system is behind a proxy, then it must be specified here so that it is correctly configured

{% hint style="info" %}
NOTE - Edge makes use of mTLS connection. See [here](https://help.tillit.cloud/tillit/infrastructure/firewall-security#proxy-exceptions) for more information on this.
{% endhint %}

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-dea18c787dc882c7d0302df64c18cd758d22f7e0%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Finish install

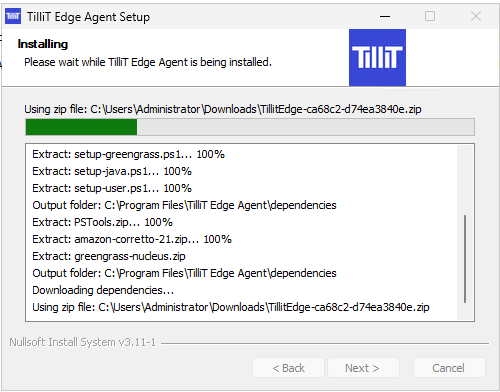

Then click "**Install".** This will unzip the file and configure the necessary files for you. It might take a while to finish and it may pause on a certain step before progressing.

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-73d783c033f16c953c006685b8bfae1d3021e864%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

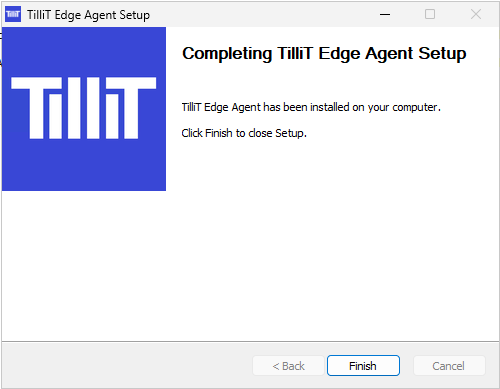

The end screen should look like this if successful.

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-42bd33c5c46119124e16bd78501daef112f86489%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

## Verifying the installation

There are three spots to look out for to verify the installation was successful

### Installer Log

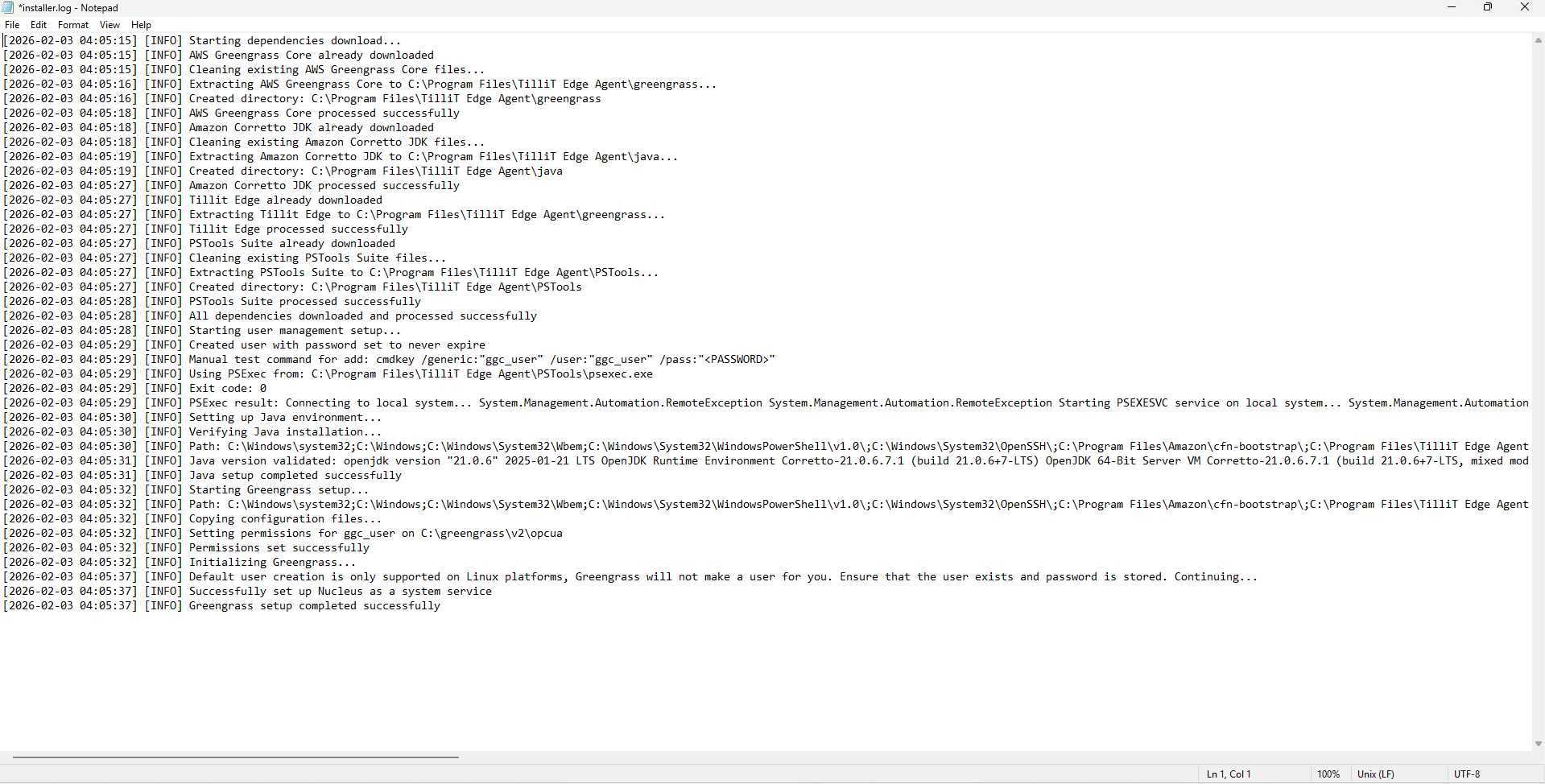

The installer will log out any important info to an installer log file located in C:\Program Files\TilliT Edge Agent\installer.log

Open this file and verify that the last log line matches as per below, and that the rest of the log doesn't contain any errors

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-57766f39e01e6eaaa70089683f1d0ac446e73db6%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### Windows Service

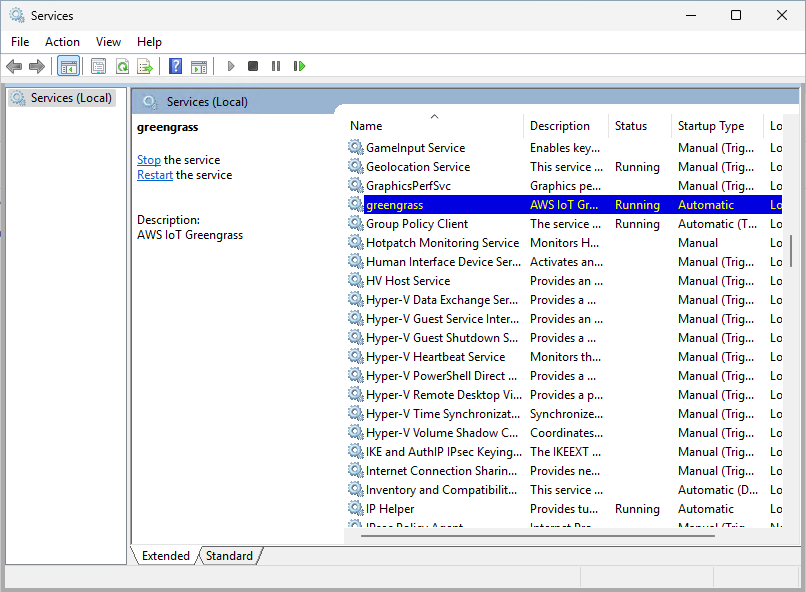

The installer will setup a Windows Service called greengrass. This is the agent running and will auto-start on system boot.

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-47f8a8f25402808788765e4c60980e9fe1b567fb%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

### TilliT Edge Agent Logs

There are two log files which will provide important system information. You can find them here

C:\greengrass\v2\logs\greengrass.log

C:\greengrass\v2\logs\production-TilliTEdgeComponent.log
