# Asset Profile

The **Asset Profile** setting defines how speed is calculated for OEE, depending on how the machine operates.

* For machines that run **continuously and at high speed**, it’s important to reflect the most **current** speed data. These machines benefit from using the **latest possible speed readings**.
* For machines that operate in **batches** or have intermittent runs, speed data should be measured from a point slightly in the past (e.g., the most recent completed minute). This prevents misleading results such as a burst of high speed followed by a period of zero speed, which could skew the data.

To address both use cases, the system now uses a **rolling window** to calculate the **average speed over the last hour**. By default, the system also uses a **10-minute average speed**.

With the updated **Asset Profile** feature, you can now configure the behavior per machine:

* Choose whether the speed should reflect the most **recent real-time data** (choose 0 or 1 for an instantaneous rate)
* Or use a **delayed windowed average** suitable for batch-type machines. This is set at 10 minutes as default.

## Navigation

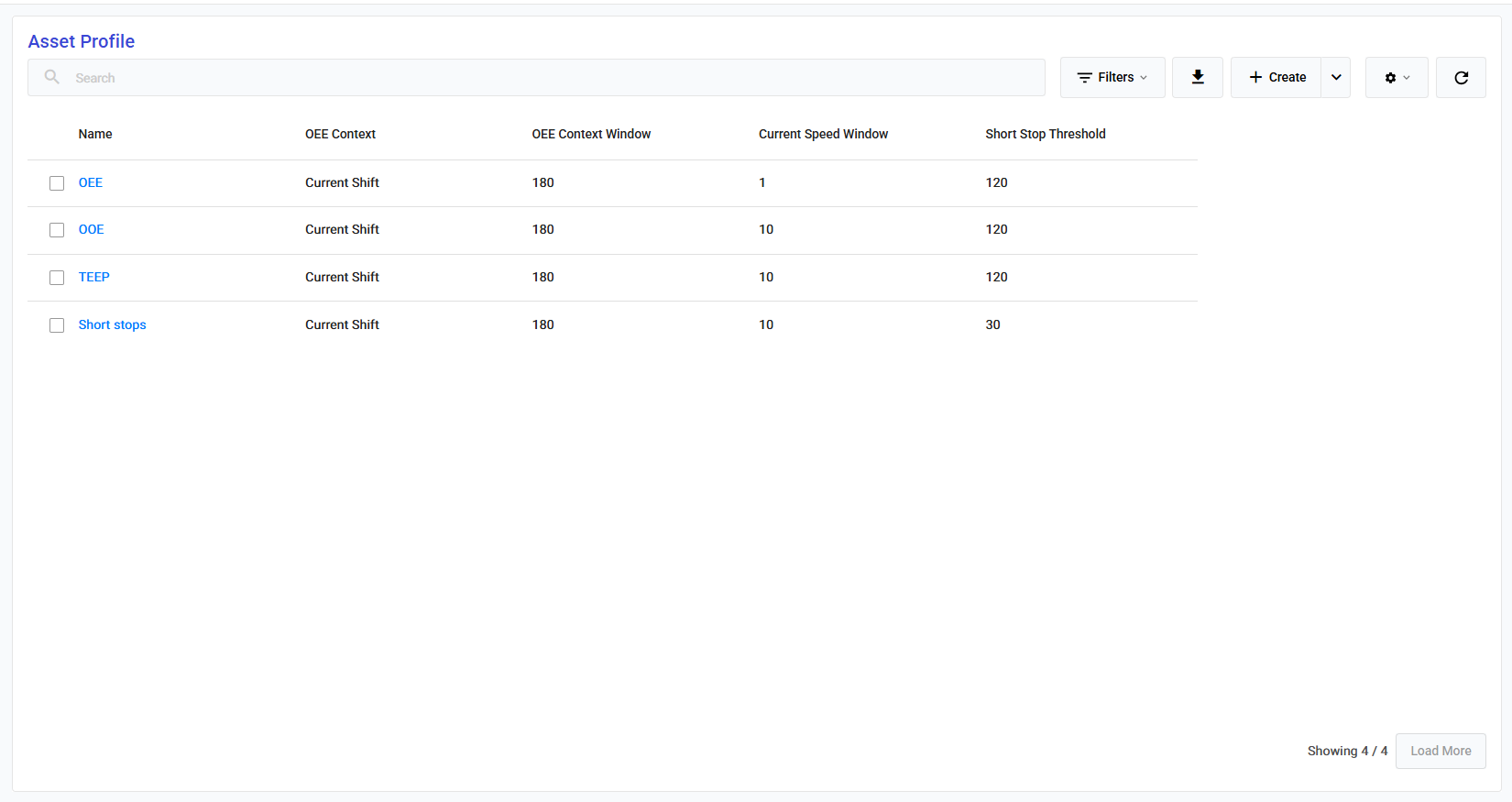

Go to Asset Hierarchy > Asset Profile

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-640cf5055007e9eaf209c8c9358ef793853f8052%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>

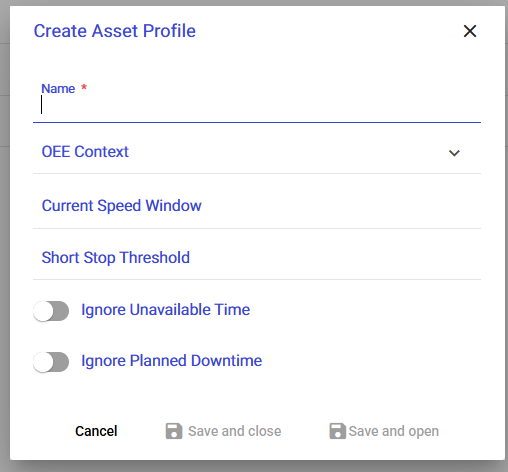

## Creating an Asset Profile

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-047b26547e79fcfacbd2359aa5fd1db260ed6a6a%2Fimage.png?alt=media" alt="" width="381"><figcaption></figcaption></figure>

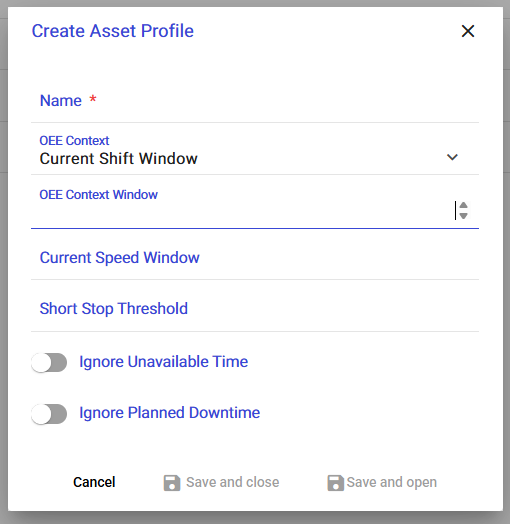

<table><thead><tr><th>Field</th><th width="491">Description</th><th>Uom</th></tr></thead><tbody><tr><td>Name</td><td>Name of the Asset Profile</td><td></td></tr><tr><td>OEE Context</td><td>What to use to calculate stats for an asset</td><td></td></tr><tr><td>OEE Context Window</td><td><ul><li><strong>Current Shift</strong> - Asset OEE calculated from start of current shift ← This represents current and default behavior</li><li><strong>Current Shift Window</strong> - Asset OEE calculated from start of current shift BUT only for the last x minutes.</li><li><strong>Current Order</strong> - Asset OEE calculated from start of current order</li><li><strong>Current Shift Window</strong> - Asset OEE calculated from start of current shift BUT only for the last x minutes.</li><li><strong>Asset Window</strong> - Asset OEE calculated for for the last x minutes.</li><li><strong>Today</strong> - Asset OEE calculated from the start of the day to now.</li></ul><p><br>If your OEE context contains "Window", then you can set the context window duration.<br><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-0ecdbafc889049f6e1ac7cf7fc55556981d9fccc%2Fimage.png?alt=media" alt=""></p></td><td>Minutes</td></tr><tr><td>Current Speed Window</td><td>How often you want the speed of production to be calculated. Default value is 10 minutes</td><td>Minutes</td></tr><tr><td>Short Stop Threshold</td><td>Threshold to categorize downtime evetns on that Asset as "Short stop" or "Long Stop".<br>See <a data-mention href="../../../everyday-usage/downtime-table">downtime-table</a></td><td>Seconds</td></tr><tr><td>Ignore Unavailable Time</td><td>When checked, will ignore any rows that have the downtime type of UNAVAILABLE.<br>This downtime type is often used whenever a shift break occurs and we want to ignore the downtime which was caused by that.</td><td></td></tr><tr><td>Ignore Planned Downtime</td><td>When checked, do not count planned down time's as "penalties" when calculating availability</td><td></td></tr><tr><td>Enable Shift Handover AI</td><td>When checked, assets with this asset profile assigned will get a message in the asset chat during shift handover. This message will contain insights from the previous shifts.<br>See more below <a data-mention href="#heads-up-ai-assistant-insights">#heads-up-ai-assistant-insights</a></td><td></td></tr><tr><td>Enable Order Ready AI</td><td>When checked, assets with this asset profile assigned will get a message in the asset chat after you have ready an order. This message will contain insights from the orders of the same materials.<br>See more below <a data-mention href="#heads-up-ai-assistant-insights">#heads-up-ai-assistant-insights</a></td><td></td></tr></tbody></table>

## Heads Up AI Assistant Insights

Heads Up AI Assistant delivers simple but intelligent production insights when you need them most.

Enable it in Asset Profiles to get AI-powered shift handover summaries and order-ready recommendations based on historical data.

{% embed url="<https://youtu.be/1vNE73g6RVg?si=Vq2WkxPW209whQdl>" %}

## Attaching an Asset Profile to an Asset

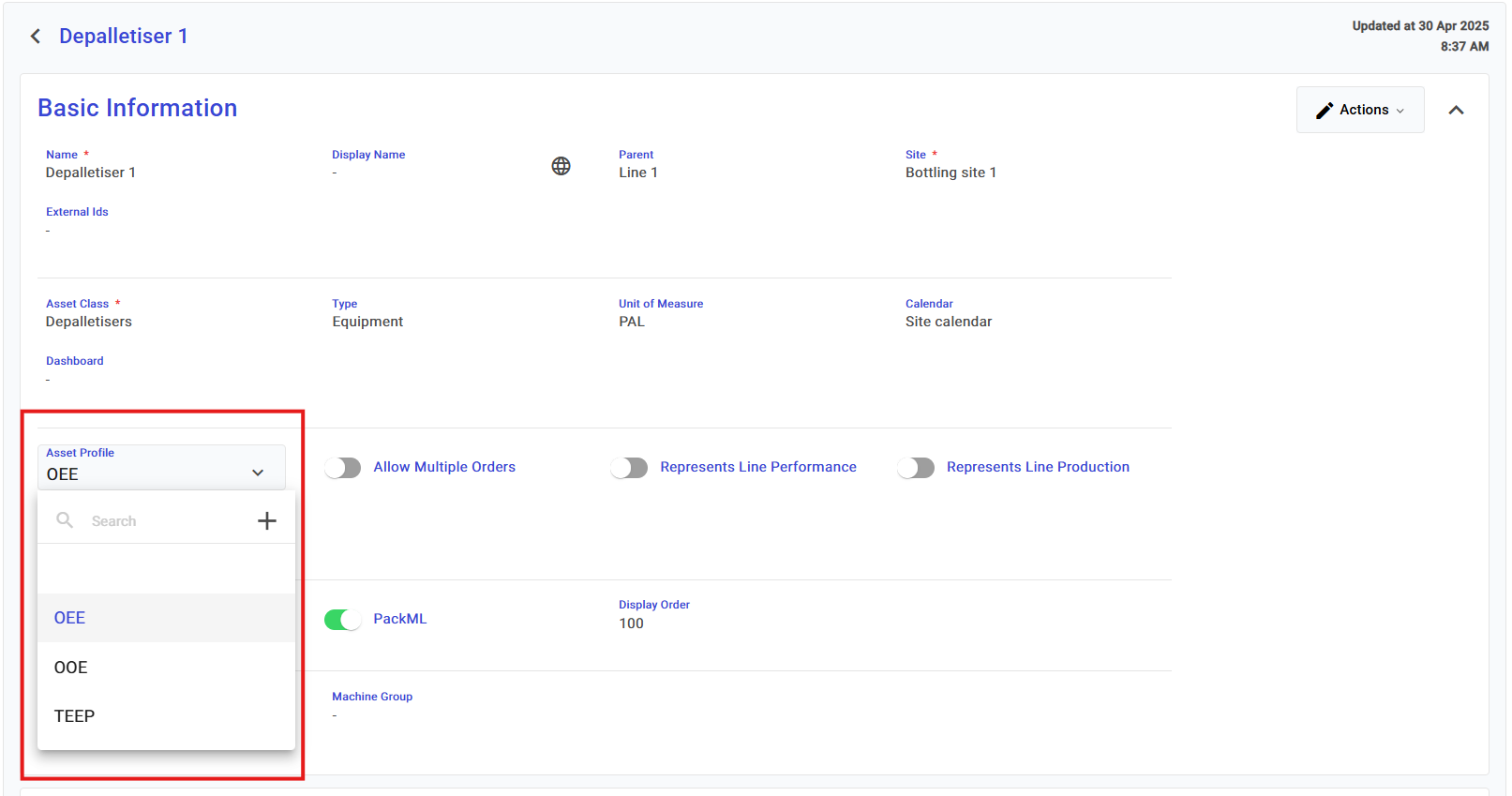

Open any Asset. Find the name of the Asset Profile you want to attach. Click on it to attach.

<figure><img src="https://352909507-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FrNT40XJFAFlAhUX8CcQS%2Fuploads%2Fgit-blob-0d8cd20ed9247e93ddd1329d5ed27a19122c425a%2Fimage.png?alt=media" alt=""><figcaption></figcaption></figure>
